HC70XX Series Hybrid Ceramic Ball Spindle Bearings

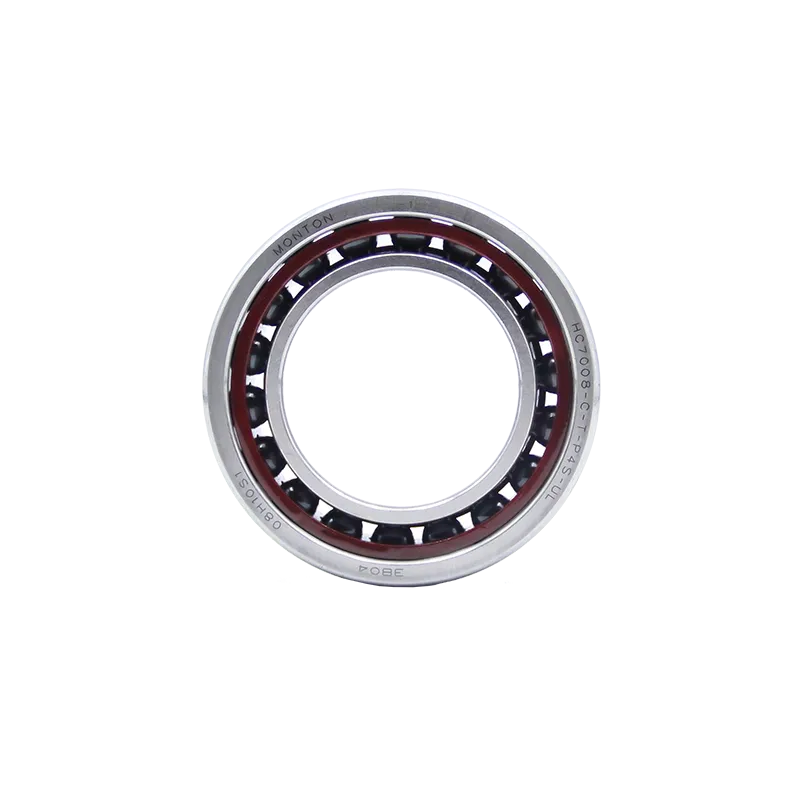

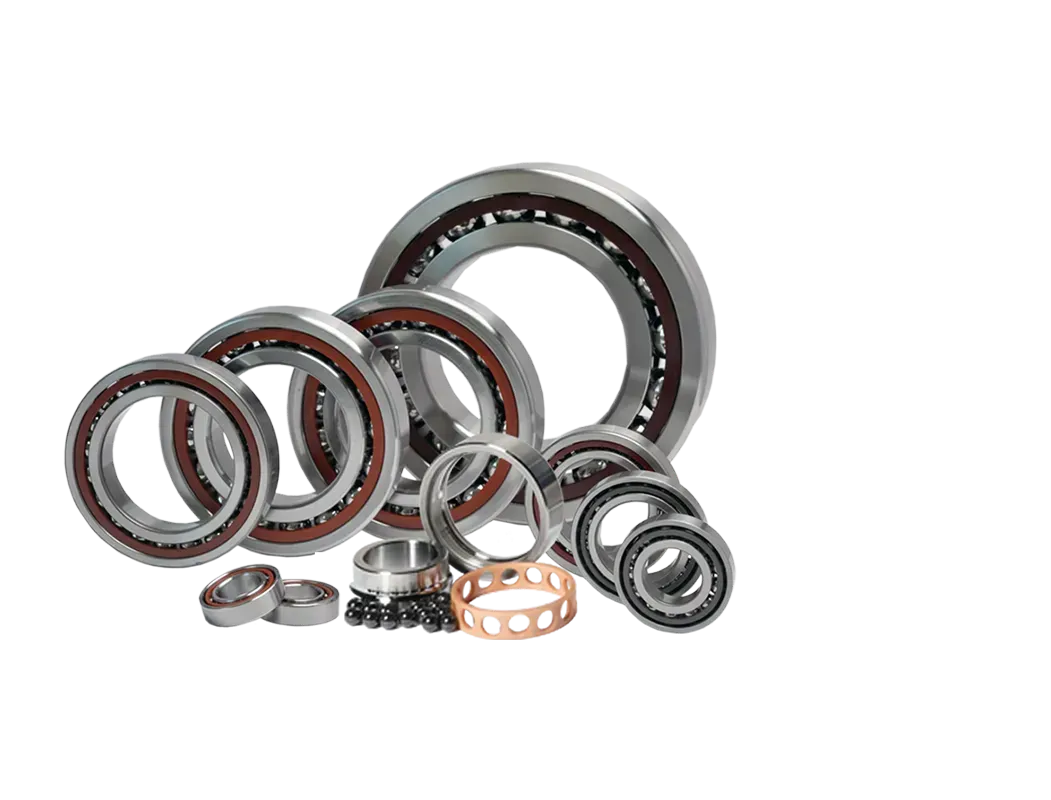

HC70XX Bearing with small Ceramic balls

HC70XX series hybrid ceramic ball bearings mainly use small ball design and divided into two types: medium-load HC70 series hybrid ceramic ball spindle bearings and light-load HC719 series hybrid ceramic ball spindle bearings. HC series hybrid ceramic ball bearings do not have seals and can run in high speed. Using ceramic material silicon nitride Si3N4, ceramic balls have the characteristics of high speed, low heat generation, high rigidity and high reliability. Bearings using high-precision ceramic balls can achieve higher precision processing. Ceramic balls are lighter than steel balls. When running at high speeds, they can suppress the increase in internal load caused by centrifugal force compared to steel balls and extend their life.

Product Details

Designation	Dimensions(mm)			Basic loading (kN)		Limiting Speed (min)		Weight
Designation	d	D	B	Cr	C0r	nG Greas	nG Oil	kg
HC706-C-T-P4S	6	17	6	1.08	0.48	140000	220000	0.01
HC706-E-T-P4S	6	17	6	1.04	0.46	130000	190000	0.01
HC707-C-T-P4S	7	19	6	1.16	0.55	120000	190000	0.01
HC707-E-T-P4S	7	19	6	1.1	0.53	120000	180000	0.01
HC708-C-T-P4S	8	22	7	1.29	0.7	110000	180000	0.01
HC708-E-T-P4S	8	22	7	1.22	0.66	95000	150000	0.01
HC709-C-T-P4S	9	24	7	1.83	1	100000	170000	0.02
HC709-E-T-P4S	9	24	7	1.73	0.95	85000	140000	0.02
HC71900-C-T-P4S	10	22	6	1.37	0.77	100000	170000	0.01
HC71900-E-T-P4S	10	22	6	1.29	0.72	90000	140000	0.01
HC7000-C-T-P4S	10	26	8	1.9	1.1	90000	150000	0.02
HC7000-E-T-P4S	10	26	8	1.8	1.06	80000	120000	0.02
HC71901-C-T-P4S	12	24	6	1.4	0.83	90000	150000	0.01
HC71901-E-T-P4S	12	24	6	1.34	0.8	85000	130000	0.01
HC7001-C-T-P4S	12	28	8	1.86	1.12	80000	130000	0.02
HC7001-E-T-P4S	12	28	8	1.76	1.08	75000	110000	0.02
HC71902-C-T-P4S	15	28	7	1.93	1.22	75000	120000	0.02
HC71902-E-T-P4S	15	28	7	1.83	1.16	67000	95000	0.02
HC7002-C-T-P4S	15	32	9	2.6	1.7	70000	110000	0.03
HC7002-E-T-P4S	15	32	9	2.45	1.6	63000	90000	0.03
HC71903-C-T-P4S	17	30	7	2	1.34	70000	110000	0.02
HC71903-E-T-P4S	17	30	7	1.9	1.27	63000	90000	0.02
HC7003-C-T-P4S	17	35	10	2.65	1.83	63000	95000	0.04
HC7003-E-T-P4S	17	35	10	2.5	1.73	56000	80000	0.04
HC71904-C-T-P4S	20	37	9	2.7	1.96	56000	85000	0.04
HC71904-E-T-P4S	20	37	9	2.55	1.86	50000	70000	0.04
HC7004-C-T-P4S	20	42	12	4.3	3.2	53000	80000	0.08
HC7004-E-T-P4S	20	42	12	4.05	3	48000	67000	0.08
HC71905-C-T-P4S	25	42	9	2.9	2.36	48000	70000	0.05
HC71905-E-T-P4S	25	42	9	2.75	2.2	43000	60000	0.05
HC7005-C-T-P4S	25	47	12	4.3	3.45	45000	67000	0.09
HC7005-E-T-P4S	25	47	12	4.05	3.25	40000	56000	0.09
HC71906-C-T-P4S	30	47	9	4.4	3.65	43000	63000	0.05
HC71906-E-T-P4S	30	47	9	4.15	3.45	38000	53000	0.05
HC7006-C-T-P4S	30	55	13	6	4.9	38000	56000	0.12
HC7006-E-T-P4S	30	55	13	5.7	4.65	34000	48000	0.12
HC71907-C-T-P4S	35	55	10	4.8	4.4	36000	53000	0.08
HC71907-E-T-P4S	35	55	10	4.5	4.05	32000	45000	0.08
HC7007-C-T-P4S	35	62	14	6.4	5.85	34000	50000	0.17
HC7007-E-T-P4S	35	62	14	6.1	5.4	30000	43000	0.17
HC71908-C-T-P4S	40	62	12	5	4.8	32000	48000	0.12
HC71908-E-T-P4S	40	62	12	4.75	4.5	30000	43000	0.12
HC7008-C-T-P4S	40	68	15	6.8	6.55	30000	45000	0.2
HC7008-E-T-P4S	40	68	15	6.4	6.1	28000	40000	0.2
HC71909-C-T-P4S	45	68	12	6.95	6.7	28000	43000	0.13
HC71909-E-T-P4S	45	68	12	6.55	6.3	26000	38000	0.13
HC7009-C-T-P4S	45	75	16	8.8	8.5	26000	40000	0.26
HC7009-E-T-P4S	45	75	16	8.3	8	26000	38000	0.26
HC71910-C-T-P4S	50	72	12	7.1	7.2	26000	40000	0.14
HC71910-E-T-P4S	50	72	12	6.7	6.7	24000	36000	0.14
HC7010-C-T-P4S	50	80	16	9.15	9.15	24000	38000	0.27
HC7010-E-T-P4S	50	80	16	8.65	8.5	24000	36000	0.27
HC71911-C-T-P4S	55	80	13	9.3	9.5	24000	38000	0.19
HC71911-E-T-P4S	55	80	13	8.8	8.8	22000	34000	0.19
HC7011-C-T-P4S	55	90	18	12.9	13.2	22000	36000	0.4
HC7011-E-T-P4S	55	90	18	12.2	12.2	20000	32000	0.4
HC71912-C-T-P4S	60	85	13	9.65	10	22000	36000	0.19
HC71912-E-T-P4S	60	85	13	9	9.5	20000	32000	0.19
HC7012-C-T-P4S	60	95	18	13.4	14	20000	34000	0.43
HC7012-E-T-P4S	60	95	18	12.7	13.2	19000	30000	0.43
HC71913-C-T-P4S	65	90	13	9.8	10.8	20000	34000	0.21
HC71913-E-T-P4S	65	90	13	9.3	10	19000	30000	0.21
HC7013-C-T-P4S	65	100	18	13.7	15	20000	34000	0.45
HC7013-E-T-P4S	65	100	18	12.9	14	18000	28000	0.45
HC71914-C-T-P4S	70	100	16	12.7	14	19000	32000	0.35
HC71914-E-T-P4S	70	100	16	12	13.2	17000	26000	0.35
HC7014-C-T-P4S	70	110	20	18	19.6	18000	30000	0.63
HC7014-E-T-P4S	70	110	20	17	18.3	16000	24000	0.63
HC71915-C-T-P4S	75	105	16	12.9	15	18000	30000	0.37
HC71915-E-T-P4S	75	105	16	12.2	13.7	16000	24000	0.37
HC7015-C-T-P4S	75	115	20	18.3	20	17000	28000	0.66
HC7015-E-T-P4S	75	115	20	17.3	18.6	16000	24000	0.66
HC71916-C-T-P4S	80	110	16	14.6	16.6	17000	28000	0.38
HC71916-E-T-P4S	80	110	16	13.7	15.6	16000	24000	0.38
HC7016-C-T-P4S	80	125	22	21.6	24.5	16000	26000	0.89
HC7016-E-T-P4S	80	125	22	20.4	22.8	14000	20000	0.89
HC71917-C-T-P4S	85	120	18	15	18	16000	26000	0.57
HC71917-E-T-P4S	85	120	18	14.3	17	14000	20000	0.57
HC7017-C-T-P4S	85	130	22	22	25	15000	24000	0.92
HC7017-E-T-P4S	85	130	22	20.8	23.2	14000	20000	0.93
HC71918-C-T-P4S	90	125	18	16.3	19.6	15000	24000	0.58
HC71918-E-T-P4S	90	125	18	15.6	18.6	14000	20000	0.58
HC7018-C-T-P4S	90	140	24	26	30	14000	22000	1.22
HC7018-E-T-P4S	90	140	24	24.5	28	13000	19000	1.22
HC71919-C-T-P4S	95	130	18	17	20.8	14000	22000	0.61
HC71919-E-T-P4S	95	130	18	16	19.3	13000	19000	0.61
HC7019-C-T-P4S	95	145	24	26	31	13000	20000	1.24
HC7019-E-T-P4S	95	145	24	24.5	28.5	12000	18000	1.25
HC71920-C-T-P4S	100	140	20	20.4	25	13000	20000	0.84
HC71920-E-T-P4S	100	140	20	19	23.6	12000	18000	0.84
HC7020-C-T-P4S	100	150	24	26.5	31.5	12000	19000	1.29
HC7020-E-T-P4S	100	150	24	25	30	12000	18000	1.29
HC71921-C-T-P4S	105	145	20	20.8	26.5	12000	19000	0.9
HC71921-E-T-P4S	105	145	20	19.6	24.5	12000	18000	0.9
HC7021-C-T-P4S	105	160	26	34	40.5	12000	19000	1.6
HC7021-E-T-P4S	105	160	26	32	38	11000	17000	1.6
HC71922-C-T-P4S	110	150	20	24	30.5	12000	19000	0.9
HC71922-E-T-P4S	110	150	20	22.8	28.5	11000	17000	0.9
HC7022-C-T-P4S	110	170	28	34.5	41.5	11000	18000	2.1
HC7022-E-T-P4S	110	170	28	32.5	39	9500	15000	2.1
HC71924-C-T-P4S	120	165	22	25	33.5	11000	18000	1.3
HC71924-E-T-P4S	120	165	22	23.6	31	9500	15000	1.3
HC7024-C-T-P4S	120	180	28	35.5	44	10000	17000	2.1
HC7024-E-T-P4S	120	180	28	33.5	41.5	9000	14000	2.1
HC71926-C-T-P4S	130	180	24	29	39	9500	16000	1.7
HC71926-E-T-P4S	130	180	24	27	36.5	8500	13000	1.7
HC7026-C-T-P4S	130	200	33	45.5	58.5	9000	15000	3.5
HC7026-E-T-P4S	130	200	33	42.5	54	8000	12000	3.5

Hybrid ceramic ball angular contact ball bearing (HC series) rings are made of bearing steel, and rolling elements are made of silicon nitride (ceramic). Compared with steel balls, ceramic balls are lighter and have a higher elastic modulus. Ceramic ball bearings have lower operating temperatures and smaller thermal expansion coefficients. Therefore, hybrid ceramic bearings have high stiffness, high speed, small internal centrifugal force and inertia force, so the outer ring rolling contact stress at high speed is minimized to the greatest extent.

Ceramic balls have low friction heat and low energy loss, and have longer bearing and grease service life. When subjected to frequent rapid starts and stops, they are not prone to slipping, scratches and cage damage. They are less sensitive to temperature differences in the bearing and have higher preload/clearance control accuracy. Compared with bearings using steel balls, hybrid ceramic bearings (using ceramic balls) can achieve higher speeds without significantly increasing preload due to the smaller mass of ceramic balls. Ceramic bearings are now widely used in high-speed working environments. With hybrid ceramic ball bearings, the service life of spindles and machines is significantly improved, and the system is more adaptable. These have a positive impact on machining quality.
