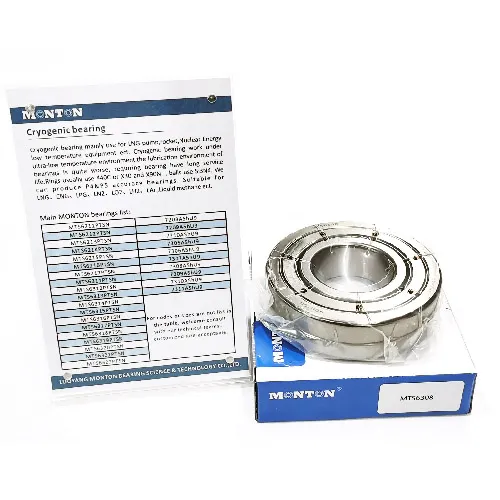

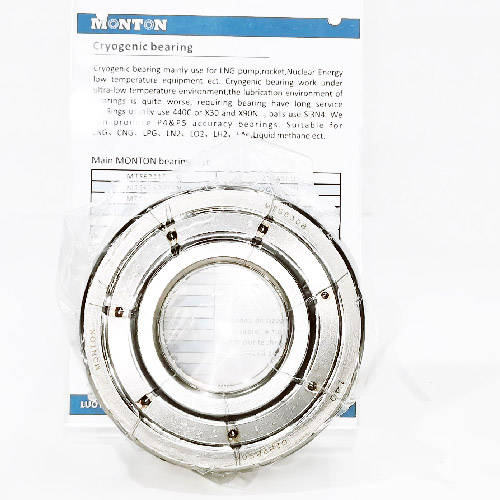

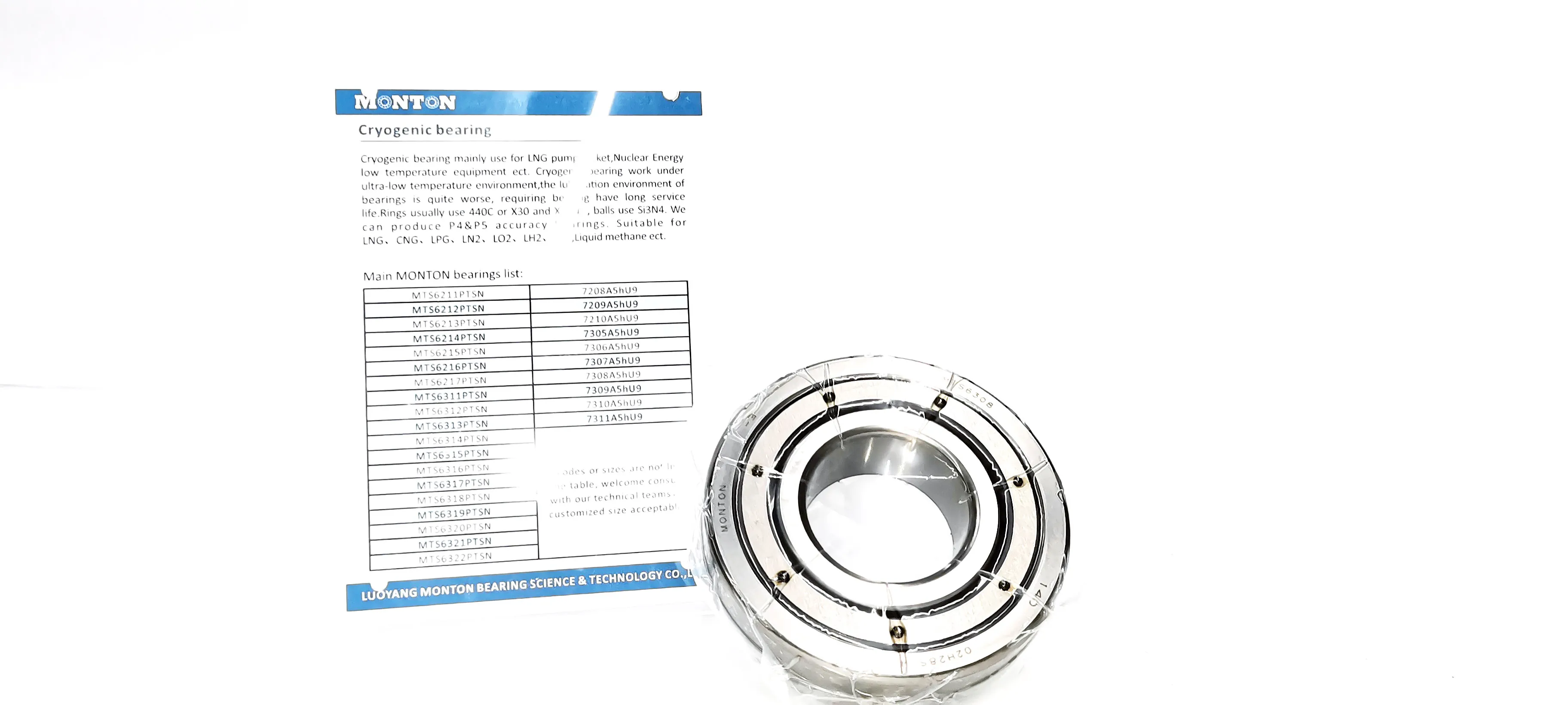

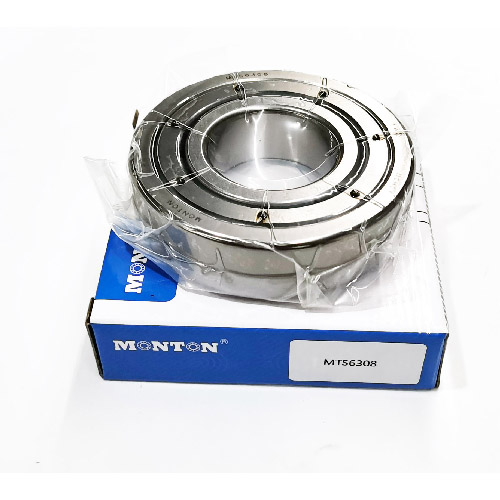

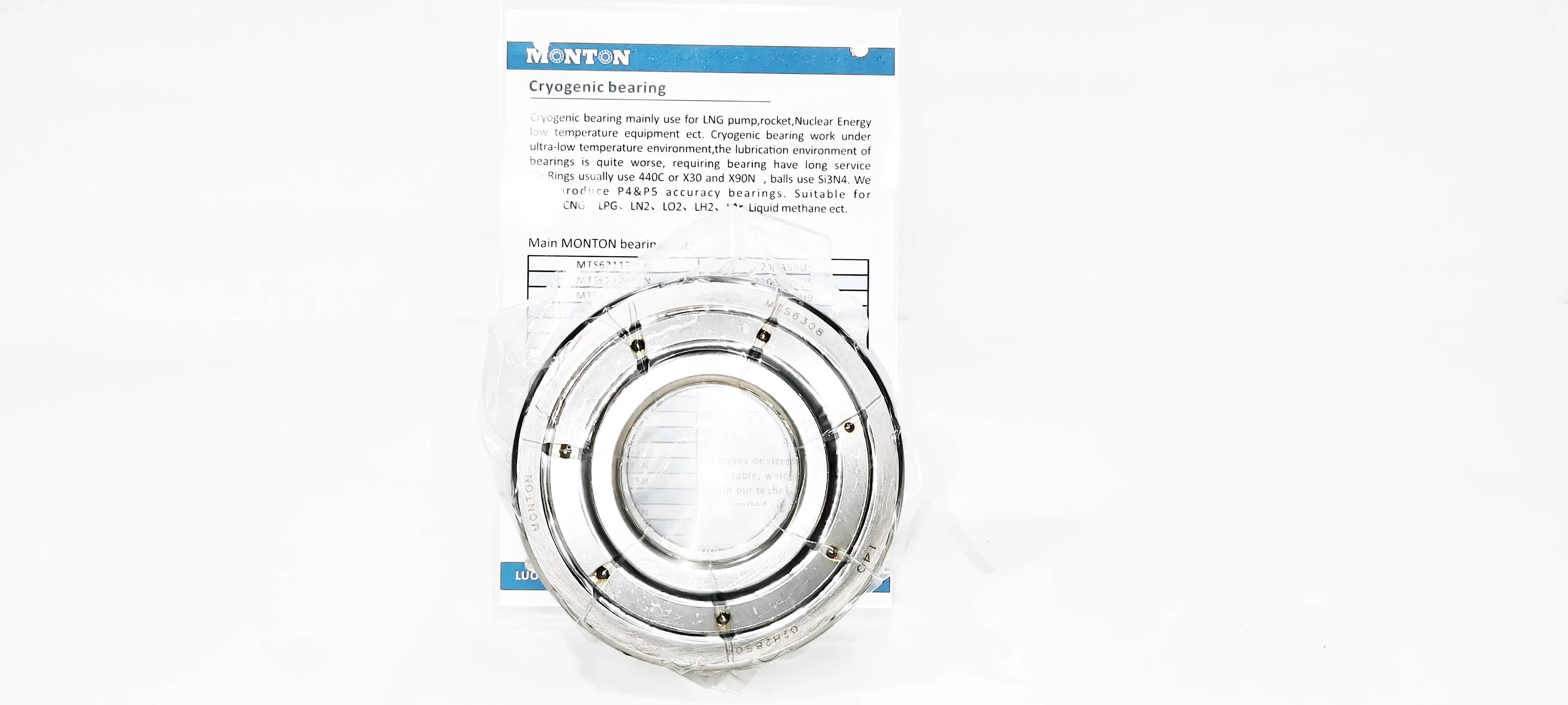

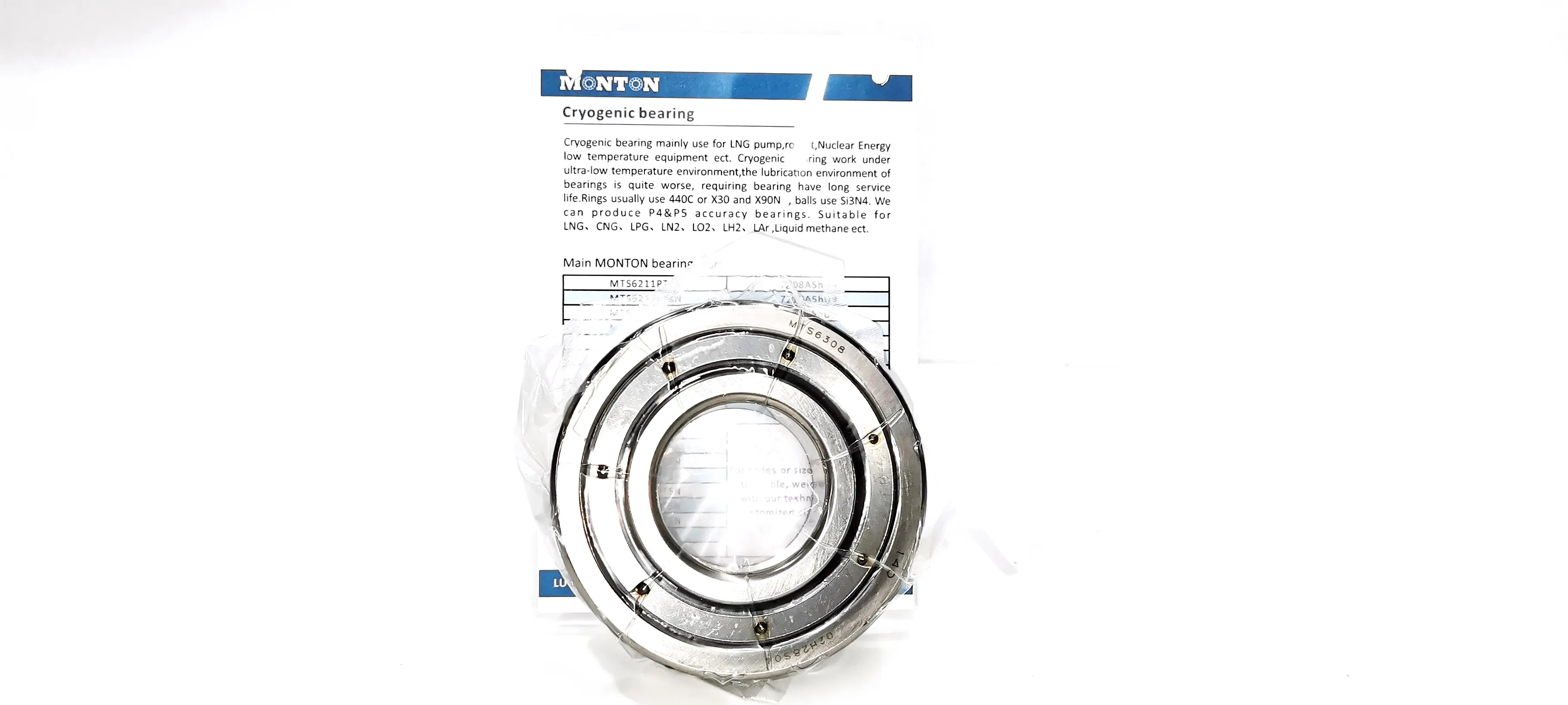

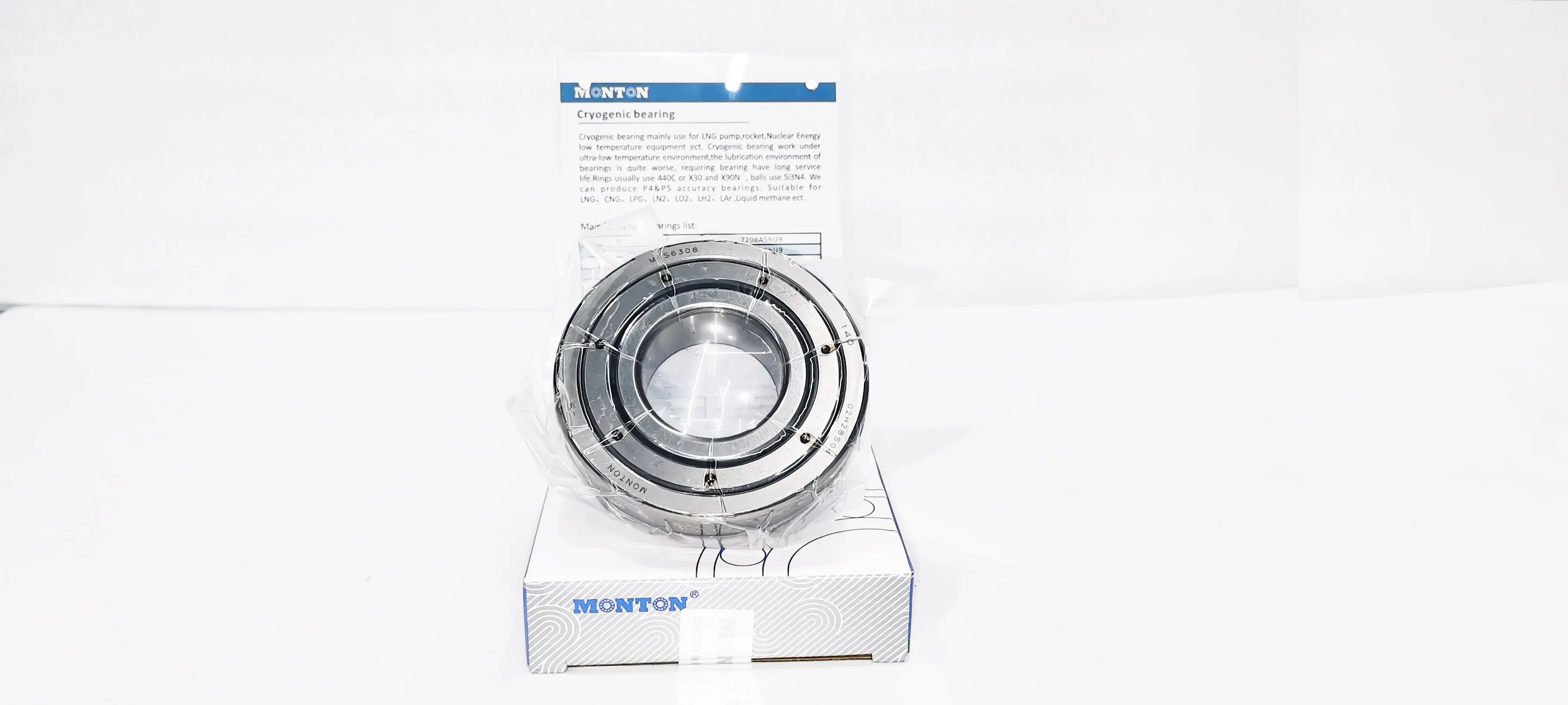

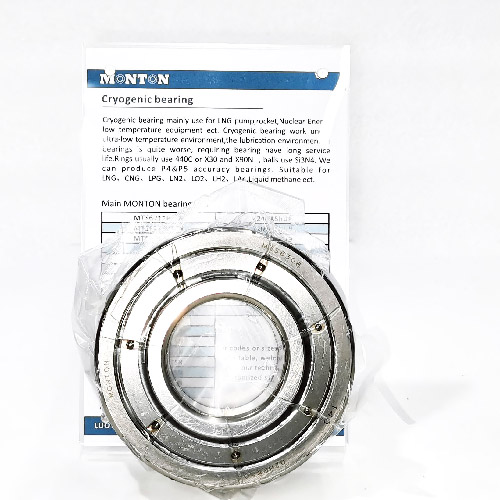

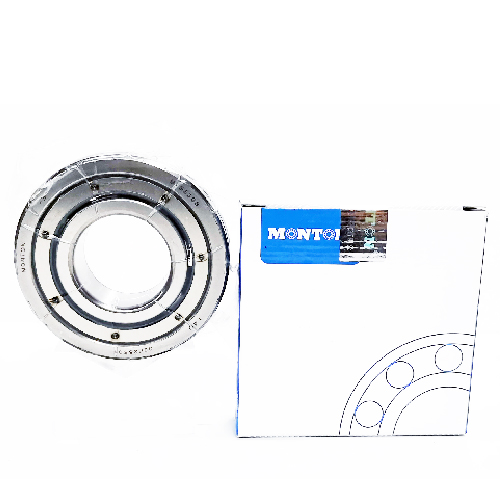

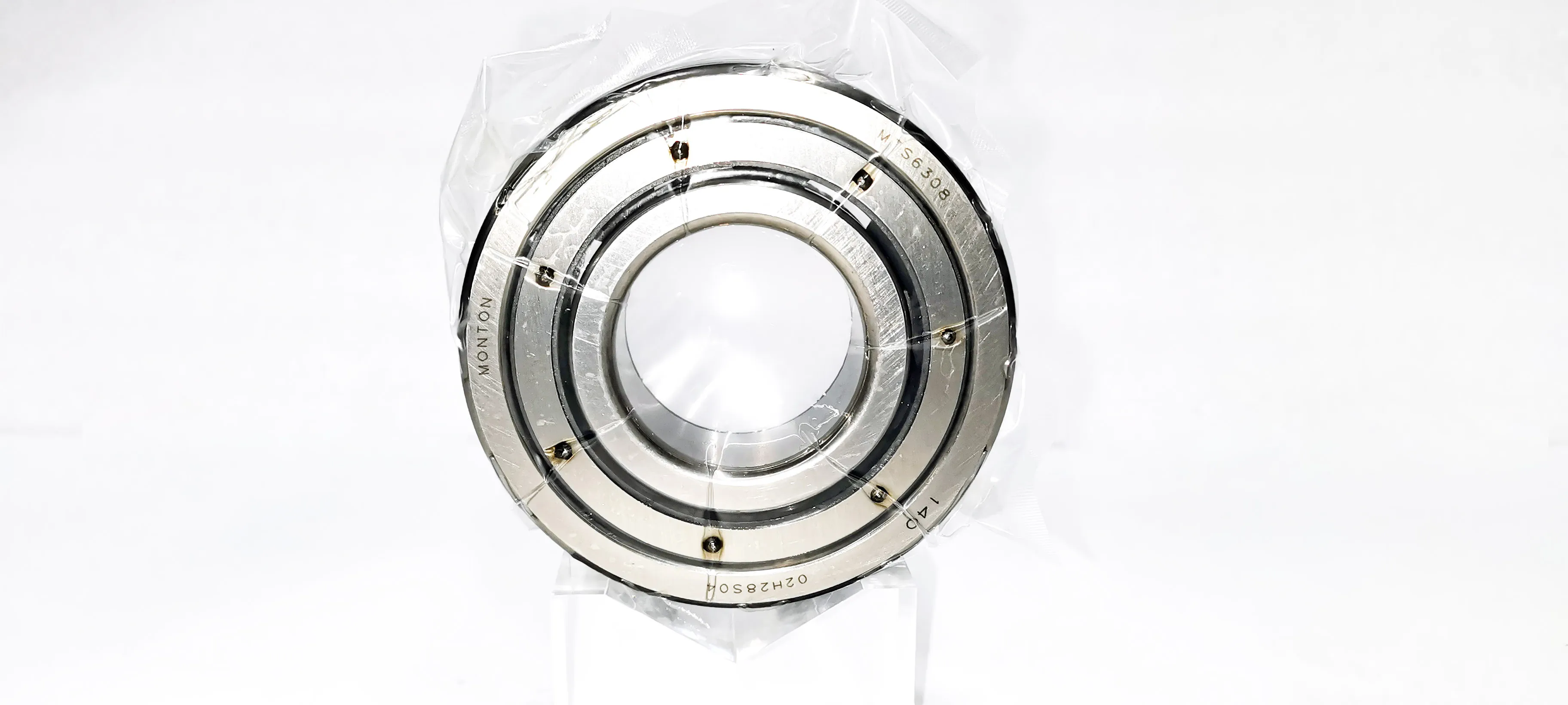

MTS6308 Cryogenic bearing
MTS6308 Cryogenic bearing
MTS6308 Cryogenic bearing
MTS6308 Cryogenic bearing
MTS6308 Cryogenic bearing
MTS6308 Cryogenic bearing
MTS6308 Cryogenic bearing
MTS6308 Cryogenic bearing
MTS6308 Cryogenic bearing
MTS6308 Cryogenic bearing

MTS6308 Cryogenic bearing

  • MONTON cryogenic bearings include a bearing inner ring, a bearing outer ring, bearing balls and a bearing cage. The bearing cage and bearing balls are arranged between the bearing inner ring and the bearing outer ring, and the bearing balls are located in the bearing cage. The characteristics are: the bearing inner ring and the bearing outer ring are made of special stainless steel, the bearing balls are made of ceramic balls, and the bearing cage is made of polyimide. It has good hardness, low temperature resistance, high temperature resistance, fatigue resistance, heat dissipation and wear resistance mechanical properties, can work normally in the low temperature working environment of LNG cryogenic submersible pumps, and ensure the service life of LNG cryogenic submersible pumps and LNG cryogenic submersible pump bearings.
Case Details

Name

Cryogenic bearing

Brand

MONTON

Model

MTS6308

Bore diameter

40mm

Outside diameter

90mm

B(width)

23mm

Ring Material

Speical bearing steel

Cage Material

PTFE cage

Bore type

deep groove

Basic dynamic load ratingCr

42.3KN

Basic static load ratingCor

24KN

Reference speed

17000r/min

Sealed

as customer requested

Weight

0.611KG

Sealing type

open

Quality standard

ISO9001: 2000/SGS

Package

single box

Original

Luoyang

Service

OEM

Delivery date

5-35 days Accord to order qty

LNG Pump Bearings

LNG Pump Bearings
LNG (Liquefied Natural Gas) pumps are used for receiving and discharging LNG to road tankers and storage tanks. For these applications the bearing operating conditions are very tough, as the temperature can reach -162°C, and the bearing must run without external lubrication. MONTON has designed a new bearing, LNG Pump Bearings, to cope with these demanding performance requirements.
