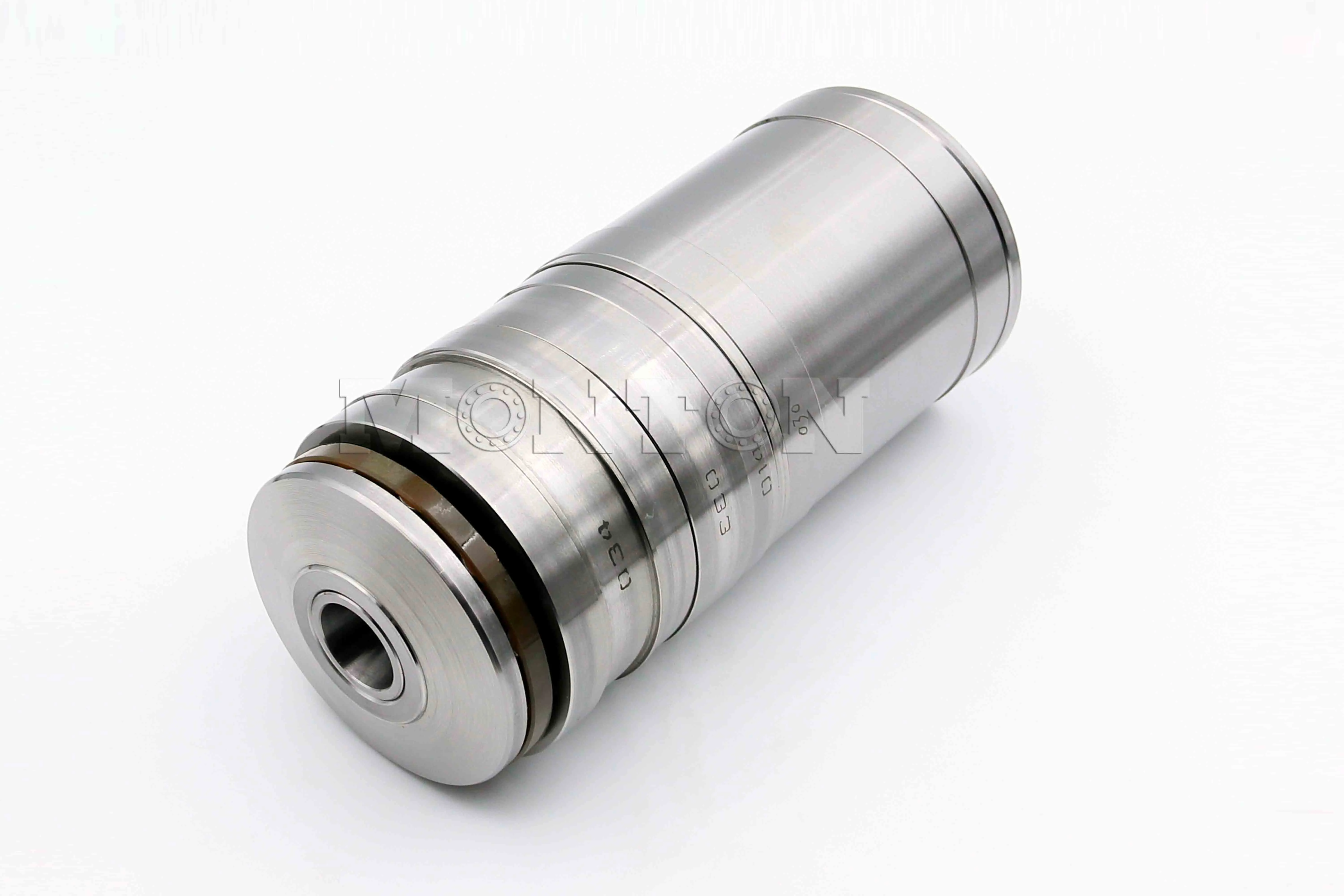

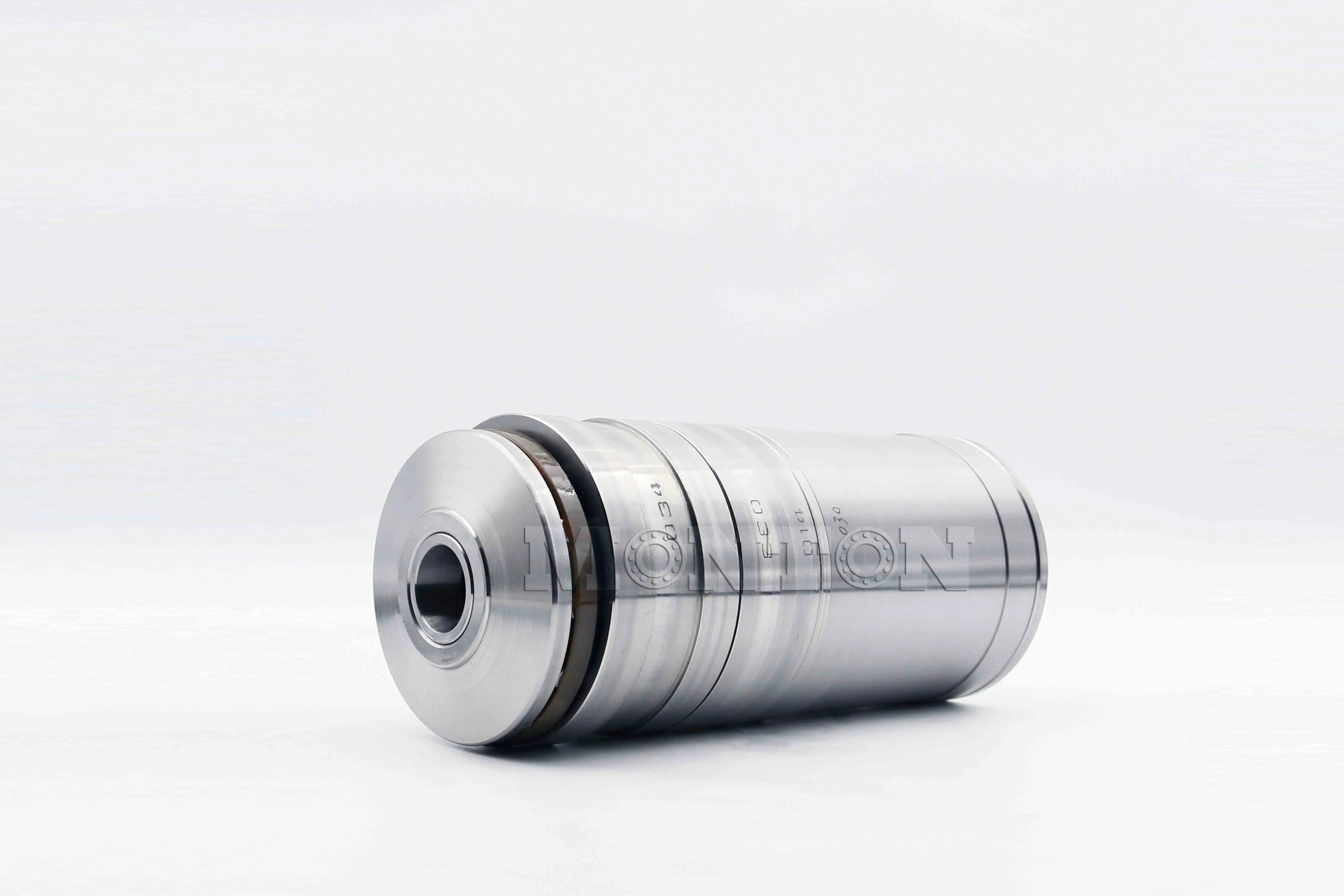

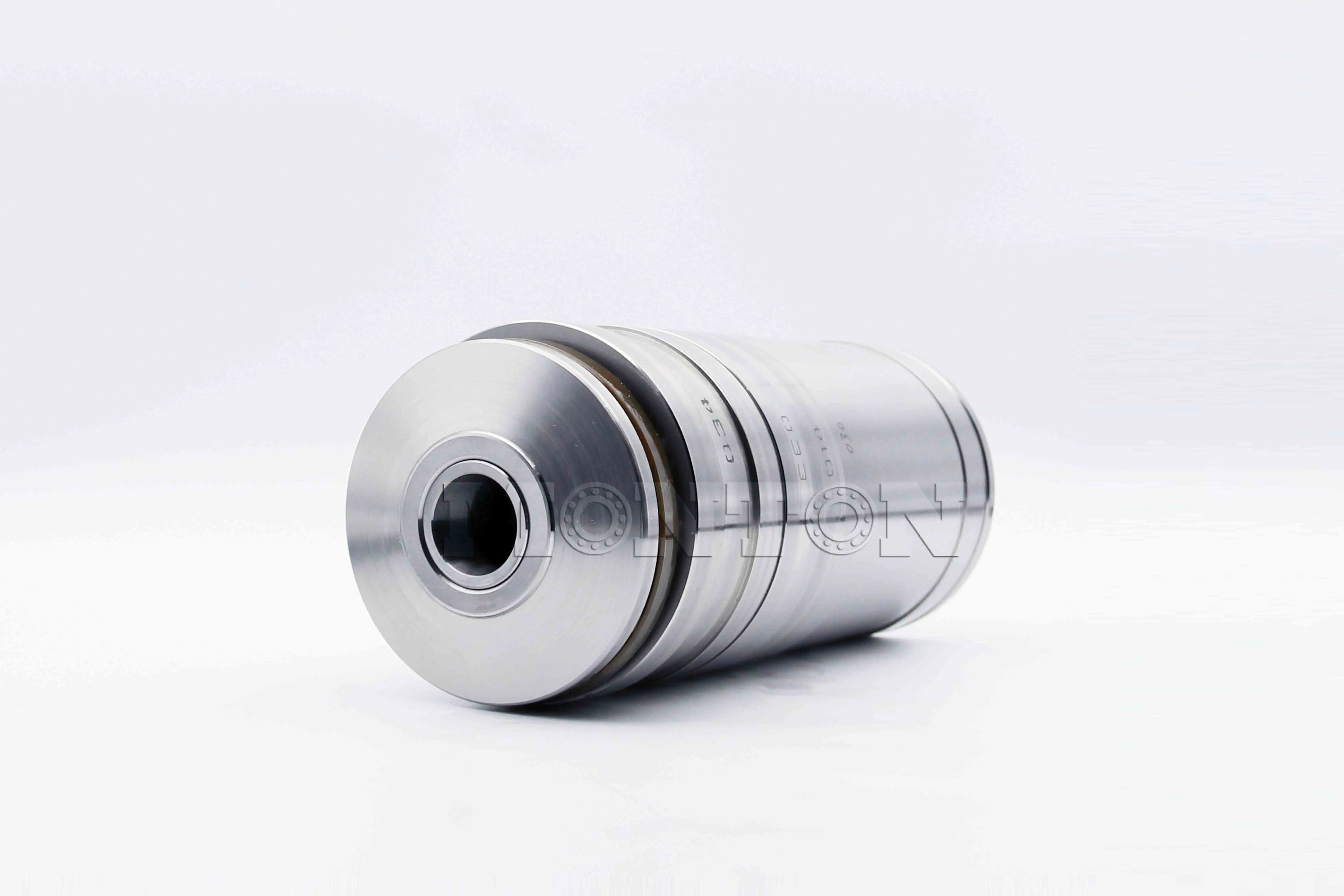

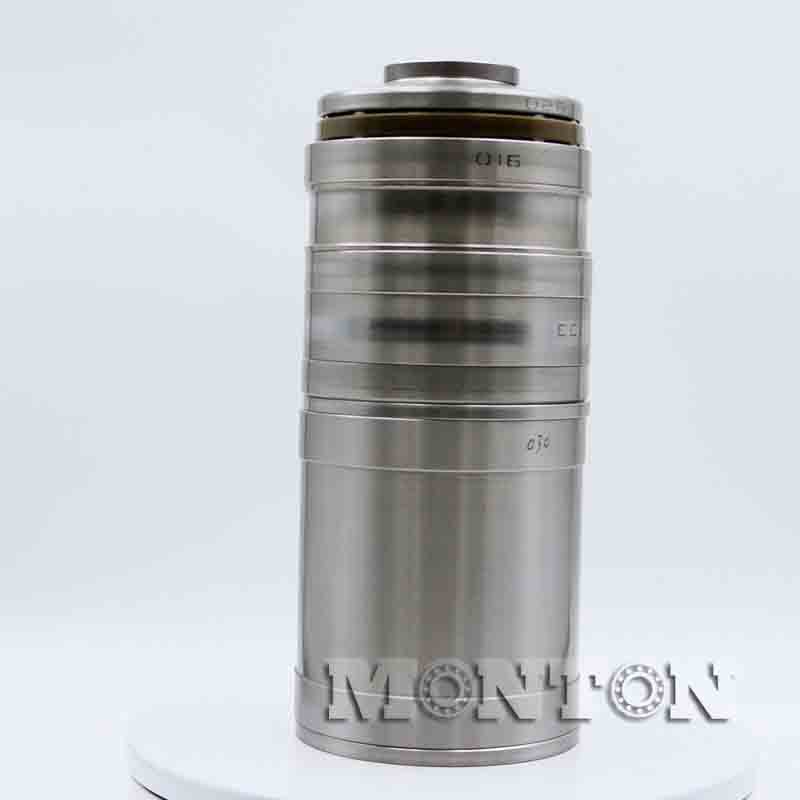

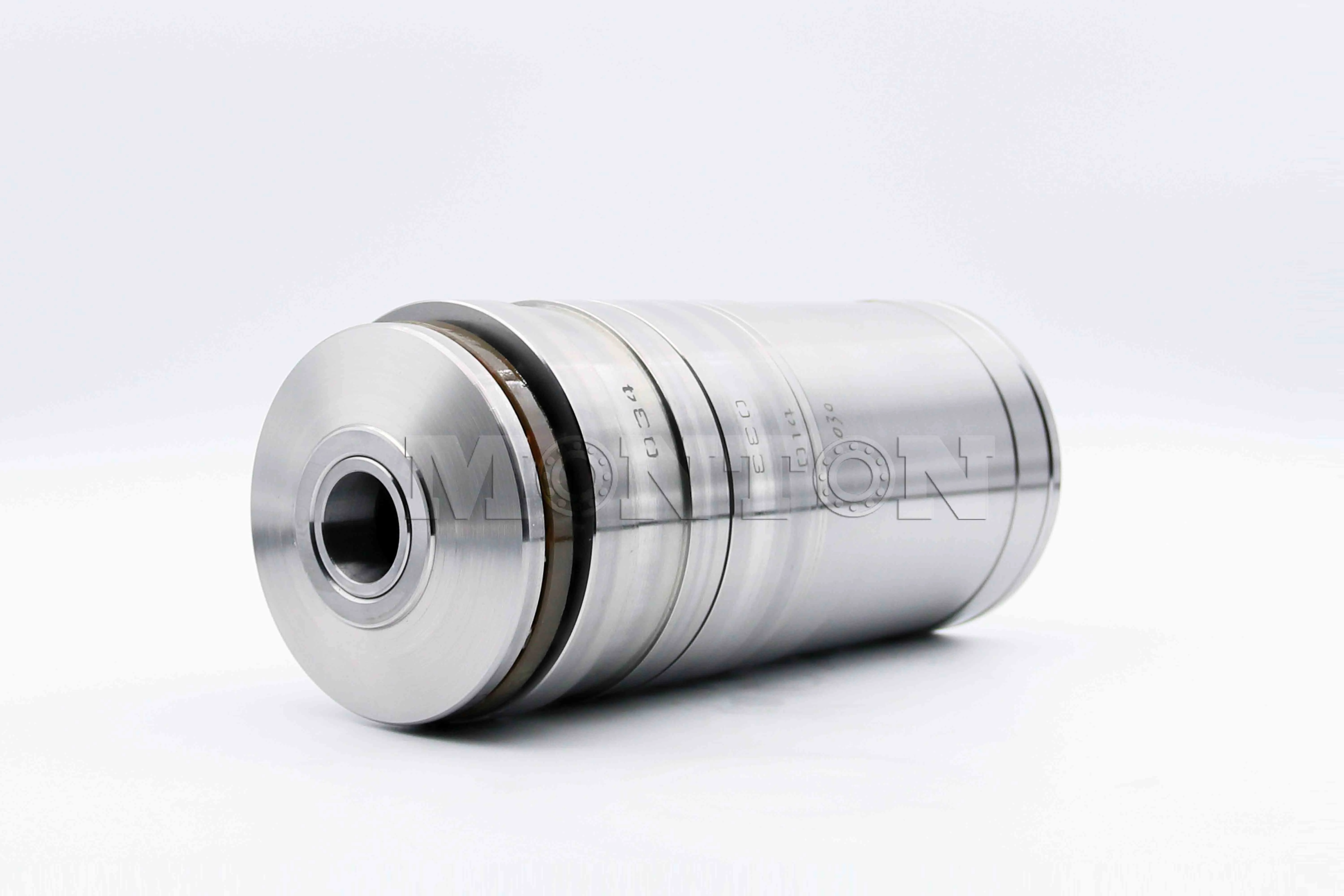

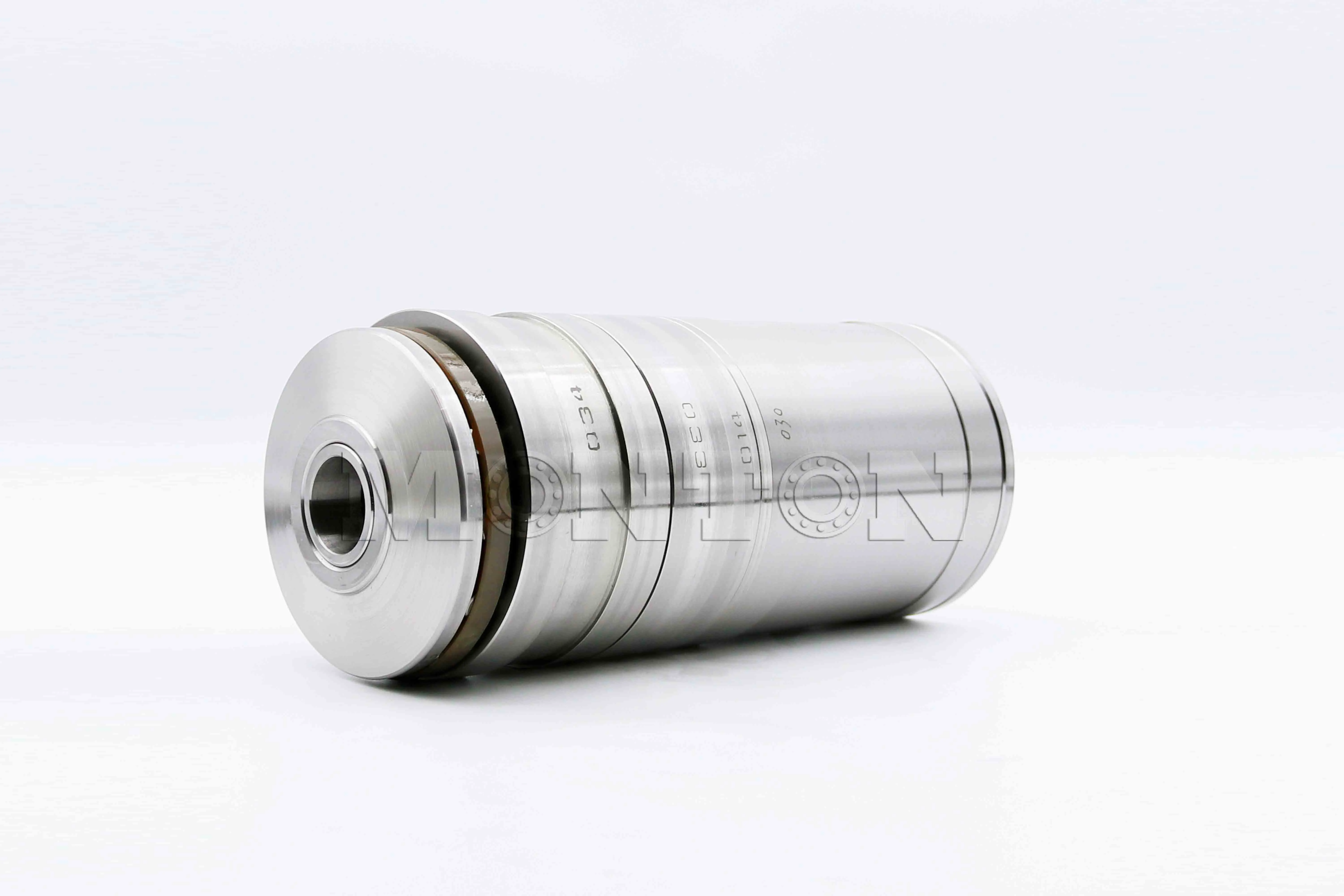

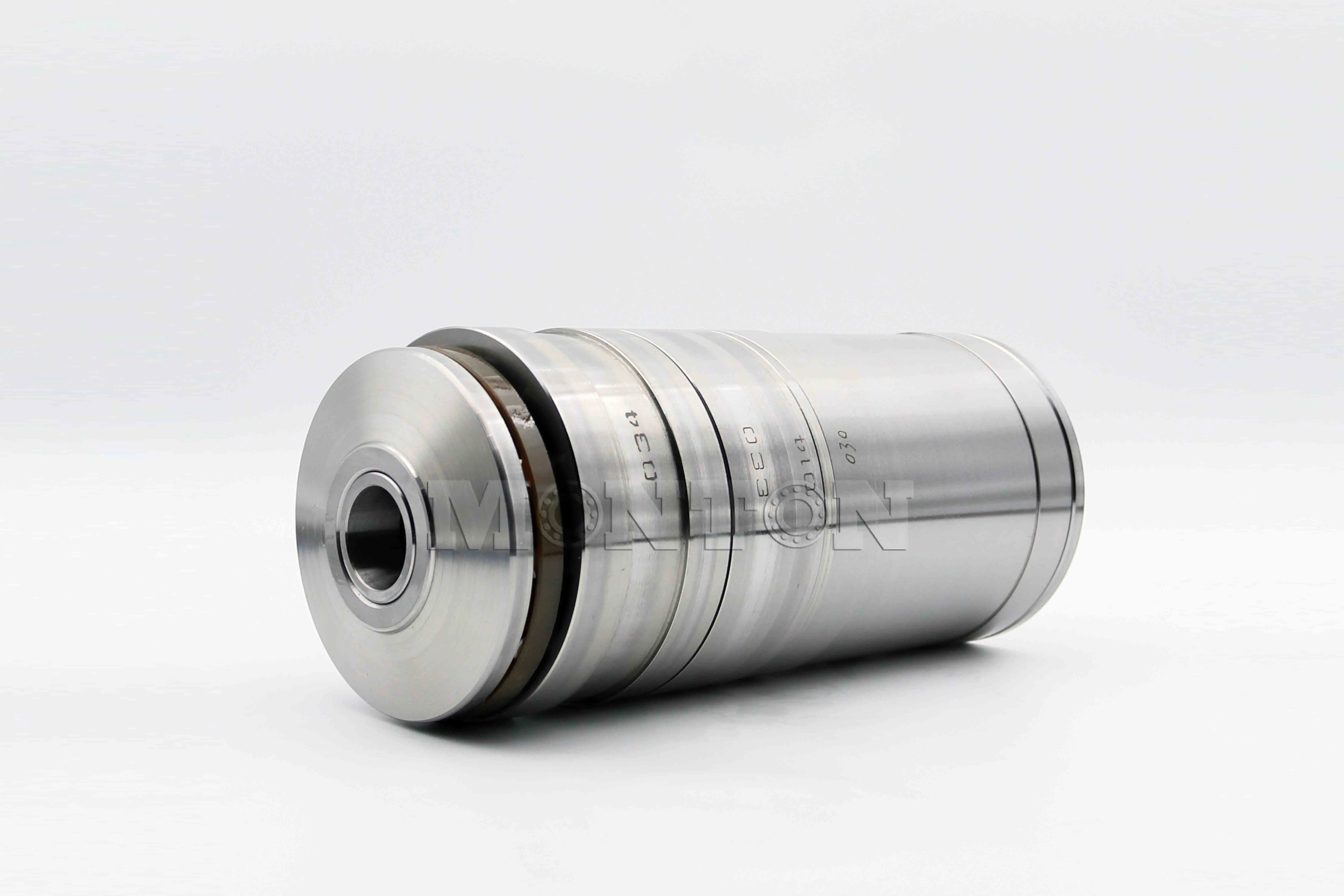

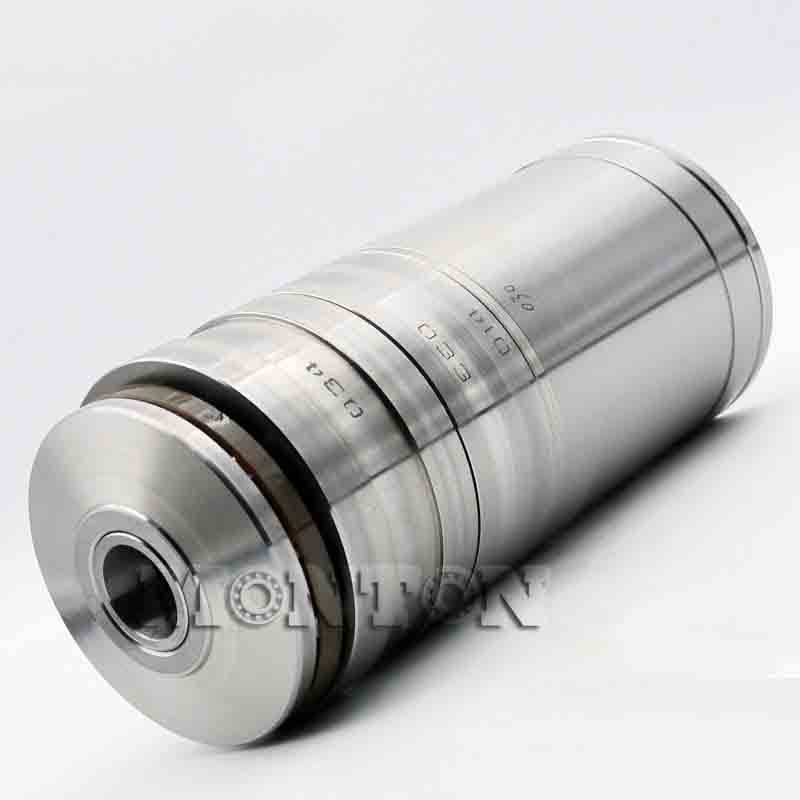

F-53043.T6AR Multi Stage cylindrical roller thrust bearings

Tandem Bearings for extruder gearboxes consist of several single row thrust cylindrical roller bearings, outer spacers, inner spacers and shaft. They have simple and compact structures, save installation space, are easy to install and using, they are eual loaded, wear-resistant, and have low vibration, low noise, long life and large axial load capacity. They have been used in most paralleltwin screw extruder gearboxes and have become the key components of twin screw extruders. Our company can provide two-row, three-row, four-row, five-row, six-row, seven-row, eight-row, shaft type and sleeve type tandem bearings, wecan be processed and designed according to customer size requirements. Youcan choose the required bearing according to the screw center distance, space size and load rate.

Case Details

Name	Multi Stage cylindrical roller thrust bearings
Seires	Multi row cylindrical roller
Brand	MONTON
Model	F-53043.T6AR
d	23mm
D	90mm
H	209.75mm
Ring Material	Gcr15
Cage Material	Nylon/Aluminum
Load rating Cr	750kN
Load rating Cor	2490kN
Shaft Tolerance	f6
Weight	6.8KG
Design Structure	cylindrical roller
Precision	P5
Assembly	Each bearing to be accompanied by instructions for assembly of individual components.
Clearance	C0 or as customer requirement
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Extruder Gearboxes Counter-rotating twin screw extruders Parallel twin-screw extruder for plastic pellets Three screw extruder oil expeller
