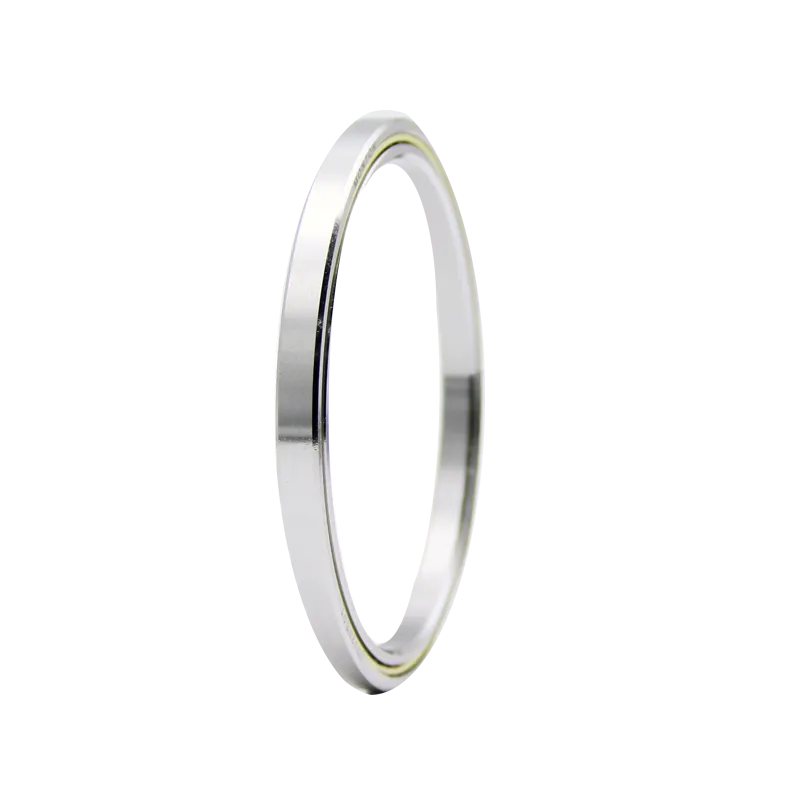

Metric slim four point ball bearing

The metric slim Bearing mainly includes specifications with cross-sectional sizes of 8, 13, and 20mm, with inner diameters ranging from 20mm to 360mm. MONTON can provide ceramic ball or integral sealed slim Bearing with cross-section. The metric slim Bearing have three structures: angular contact ball, deep groove ball, and four point ball. The main uses of slim Bearing are stepper motors, medical equipment, office equipment, testing instruments, and speed reducers. Transmission devices, robots, optics. Imaging equipment, rotary encoder.

Product Details

Bearing Number	Dimensions （mm）				Capacities						Weight
	Size（mm）		Land Diameters（mm）		Radial		Thrust		Torque（N-m）		Weight
	Bore	OD	L1	L2	Dynamic	Static	Dynamic	Static	Static	Dynamic	（kg）
K02508XP0	25	41	30.9	35.1	334	331	758	469	49	40	0.06
K05008XP0	50	66	55.9	60.1	555	460	1389	666	158	98	0.08
K06008XP0	60	76	65.9	70.1	656	506	1641	745	219	127	0.09
K07008XP0	70	86	75.9	80.1	757	549	1894	819	290	158	0.1
K08008XP0	80	96	85.9	90.1	859	591	2146	890	370	191	0.11
K09008XP0	90	106	95.9	100.1	959	631	2399	959	461	228	0.13
K10008XP0	100	116	105.9	110.1	1060	670	2651	1025	562	266	0.14
K11008XP0	110	126	115.9	120.1	1162	707	2903	1090	672	307	0.15
K12008XP0	120	136	125.9	130.1	1262	743	3156	1152	792	350	0.16
K13008XP0	130	146	135.9	140.1	1363	778	3156	1212	923	395	0.18
K14008XP0	140	156	145.9	150.1	1465	812	3661	1271	1063	442	0.19
K15008XP0	150	166	155.9	160.1	1565	846	3914	1329	1213	492	0.2
K16008XP0	160	176	165.9	170.1	1666	878	4166	1386	1373	543	0.2
K17008XP0	170	186	175.9	180.1	1767	910	4418	1441	1543	596	0.2
K18008XP0	180	196	185.9	190.1	1868	941	4671	1495	1722	651	0.21
K19008XP0	190	206	195.9	200.1	1944	963	4860	1536	1888	701	0.21
K20008XP0	200	216	205.9	210.1	2045	992	5113	1588	2086	759	0.22
K25008XP0	250	266	255.9	260.1	2550	1133	6375	1840	3226	1075	0.28
K30008XP0	300	266	305.9	310.1	3055	1261	7638	2076	4614	1429	0.35
K32008XP0	320	336	325.9	330.1	3257	1310	8143	2166	5238	1580	0.39
K34008XP0	340	356	345.9	350.1	3459	1350	8648	2255	5859	1728	0.42
K36008XP0	360	376	365.9	370.1	3636	1396	9089	2330	6561	1890	0.46
J02508XP0	25	41	31.55	34.42	334	331	758	469	49	40	0.06
J05008XP0	50	66	56.55	59.42	555	460	1389	666	158	98	0.08
J06008XP0	60	76	66.55	69.42	656	506	1641	745	219	127	0.09
J07008XP0	70	86	76.55	79.42	757	549	1894	819	290	158	0.10
J08008XP0	80	96	86.55	89.42	859	591	2146	890	370	191	0.11
J09008XP0	90	106	96.55	99.42	959	631	2399	959	461	228	0.13
J10008XP0	100	116	106.55	109.42	1060	670	2651	1025	562	266	0.14
J11008XP0	110	126	116.55	119.42	1162	707	2903	1090	672	307	0.15
J12008XP0	120	136	126.55	129.42	1262	743	3156	1152	792	350	0.16
J13008XP0	130	146	136.55	139.42	1363	778	3156	1212	923	395	0.18
J14008XP0	140	156	146.55	149.42	1465	812	3661	1271	1063	442	0.19
J15008XP0	150	166	156.55	159.42	1565	846	3914	1329	1213	492	0.20
J16008XP0	160	176	166.55	169.42	1666	878	4166	1386	1373	543	0.20
J17008XP0	170	186	176.55	179.42	1767	910	4418	1441	1543	596	0.2
K02513XP0	25	51	34.7	41.3	696	689	1293	869	96	96	0.13
K05013XP0	50	76	59.7	66.3	919	910	2263	1226	280	211	0.2
K06013XP0	60	86	69.7	76.3	1099	1014	2747	1436	393	272	0.23
K07013XP0	70	96	79.7	86.3	1228	1074	3070	1547	500	328	0.26
K08013XP0	80	106	89.7	96.3	1358	1133	3393	1653	619	388	0.28
K09013XP0	90	116	99.7	106.3	1551	1224	3878	1808	784	464	0.31
K10013XP0	100	126	109.7	116.3	1681	1279	4201	1906	931	532	0.34
K11013XP0	110	136	119.7	126.3	1875	1364	4686	2050	1131	617	0.37
K12013XP0	120	146	129.7	136.3	2006	1415	5010	2144	1307	693	0.4
K13013XP0	130	156	139.7	146.3	2133	1466	5333	2235	1496	771	0.43
K14013XP0	140	166	149.7	156.3	2327	1544	5817	2368	1746	869	0.46
K15013XP0	150	176	159.7	166.3	2456	1592	6141	2455	1963	954	0.48
K16013XP0	160	186	169.7	176.3	2586	1639	6464	2541	2193	1043	0.51
K17013XP0	170	196	179.7	186.3	2780	1711	6949	2666	2494	1152	0.54
K18013XP0	180	206	189.7	196.3	2909	1756	7272	2748	2753	1247	0.57
K19013XP0	190	216	199.7	206.3	3038	1800	7595	2829	3024	1344	0.6
K20013XP0	200	226	209.7	216.3	3232	1868	8080	2948	3375	1464	0.63
K25013XP0	250	276	259.7	266.3	4008	2119	10019	3403	5168	2050	0.77
K30013XP0	300	326	309.7	316.3	4719	2327	11796	3794	7242	2680	0.91
K32013XP0	320	346	329.7	336.3	5042	2419	12605	3966	8232	2963	0.97
K34013XP0	340	366	349.7	356.3	5365	2508	13412	4133	9286	3257	1.02
K36013XP0	360	386	369.7	376.3	5688	2594	14220	4298	10403	3560	1.08
K02520XP0	25	65	40	50.0	1518	1503	2545	1789	225	225	0.34
K05020XP0	50	90	65	75.0	1845	1827	3999	2418	549	470	0.52
K06020XP0	60	100	75	85.0	1906	1887	4363	2562	685	556	0.59
K07020XP0	70	110	85	95.0	2071	2050	5090	2839	899	679	0.66
K08020XP0	80	120	95	105.0	2181	2111	5454	2973	1070	777	0.73
K09020XP0	90	130	105.0	115.0	2473	2263	6181	3231	1334	916	0.80
K10020XP0	100	140	115.0	125.0	2618	2323	6545	3357	1540	1026	0.87
K11020XP0	110	150	125.0	135.0	2909	2466	7272	3601	1854	1179	0.94
K12020XP0	120	160	135.0	145.0	3200	2603	7999	3837	2196	1341	1.01
K13020XP0	130	170	1450	155 0	3345	2660	8363	3953	2460	1468	1 07
K14020XP0	140	180	155.0	165.0	3636	2791	9090	4179	2852	1643	1.15
K15020XP0	150	190	165.0	175.0	3781	2845	9453	4290	3152	1779	1.22
K16020XP0	160	200	175.0	185.0	4072	2970	10180	4507	3594	1967	1.30
K17020XP0	170	210	185.0	195.0	4363	3023	10907	4719	3929	2113	1.37
K18020XP0	180	220	195.0	205.0	4508	3143	11271	4823	4421	2312	1.44
K19020XP0	190	230	205.0	215.0	4800	3260	11999	5029	4942	2519	1.51
K20020XP0	200	240	215.0	225.0	4945	3309	12362	5130	5334	2678	1.57
K25020XP0	250	290	265.0	275.0	6108	3731	15271	5906	8087	3706	2.10
K30020XP0	300	340	315.0	325.0	7272	4119	18179	6633	11410	4849	2.30
K32020XP0	320	360	335.0	345.0	7708	4255	19270	6897	12850	5323	2.44
K34020XP0	340	380	355.0	365.0	8144	4388	20361	7154	14376	5812	2.58
K36020XP0	360	400	375	385	8581	4518	21452	7408	15988	6316	2.73

MONTON slim bearing range from bore diameters 1.000 inch to 40.000 inches. crosssection range from .187 x .187 inch to 1.000 x 1.000 inch . MONOTN's slim bearing mainly in three configurations (Types A angular contact ball bearing, C deep groove ball bearing and X four point angular contact ball bearing).Seals type mainly include angular contact ball bearing and deep groove ball bearings.

MONTON bearings can supply different internal clearances, lubrication, cage, and other characteristics, which can meet the needs of most customers. If you need non-standard customized bearings and special environments bearings , please contact our with technical team!
