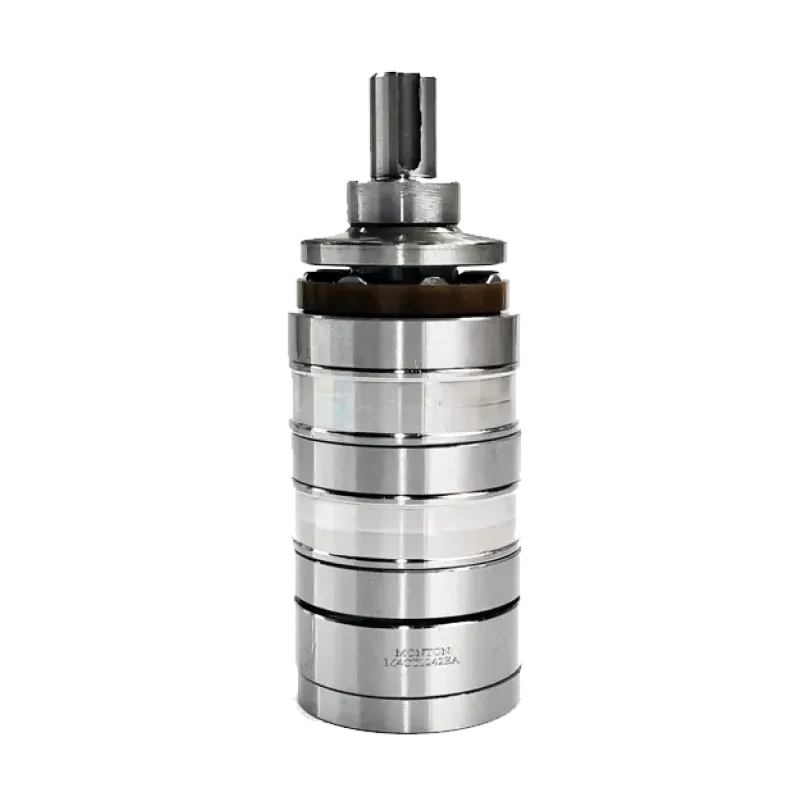

Sleeve Type Tandem Thrust Cylindrical Roller Bearings

Tandem bearings with sleeve

Tandem bearings with sleeve consist of several thrust cylindrical roller bearings, outer spacers, inner spacers and sleeves. Generally, 6 row or 8 row thrust cylindrical roller bearings combined together, and the bearing is externally added with a whole or half sleeve. Tandem bearings with sleeve have radial positioning, and the sleeve can protect the bearing parts. It has preload and does not require adjustment during working. Tandem bearings with sleeve have small radial dimensions, large axial load capacity, good load-bearing performance, higher assembly accuracy, and are convenient for transportation, storage, installation, use and maintenance.

Product Details

Old_spec	Designations	Brand	Row	Principal Dimensions mm			Basic Load Ratings		Weight/kg
				Principal Dimensions mm			KN
				d	D	H	Dyc_Cr	Stc_Cor
				d	D	H	Dyc_Cr	Stc_Cor
T6AR1452A2E	M6CT1452A2E	MONTON	6	14	52	151	386	1054	1.51
T6AR2270A2	M6CT2270A2	MONTON	6	22	70	180	513	1500	2.874
T6AR2270A2Y	M6CT2270A2Y	MONTON	6	22	70	182	513	1500	2.874
T6AR2390A2	M6CT2390A2	MONTON	6	23	90	213	828	3238	7.42
T6AR38160A2	M6CT38160A2	MONTON	6	38	160	340	1729	8019	40.8
T6AR43158A2	M6CT43158A2	MONTON	6	43.18	158.75	278.765	2116	8775	33
T8AR2270A2E	M8CT2270A2E	MONTON	10	22	70	233	572	2245	4.4
T8AR25105A2	M8CT25105A2	MONTON	11	25	105	320	1208	5223	17.3
T8AR30127A2	M8CT30127A2	MONTON	14	30	127	372	1488	8435	30.97
